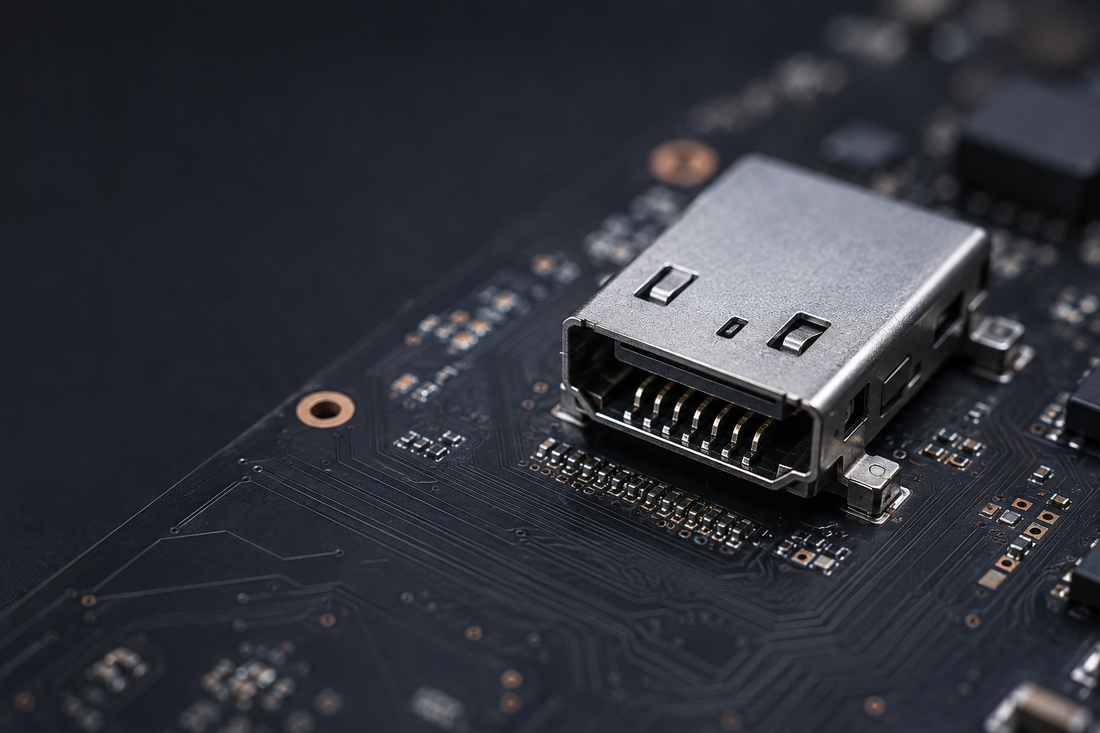

PS5 HDMI Diode Mode Measurements – Repair Reference Guide
Share
When a PlayStation 5 powers on but produces no picture, the HDMI port is only one possible cause. The fault may also be related to damaged signal lines, protection components, filters, the HDMI encoder, hot-plug detection, or other parts of the HDMI circuit.
Diode-mode testing is a useful way to compare each HDMI line against an expected pattern while the motherboard is completely unpowered. It can help identify abnormal lines before replacing the HDMI port or removing major ICs.
Why Use Diode Mode?
Diode-mode testing can help technicians:
- Detect a signal line that is shorted to ground.
- Identify an open line caused by a broken HDMI port pin, lifted pad, or damaged trace.
- Compare matching differential-pair lines for consistency.
- Find a failed ESD or protection component before replacing the HDMI encoder.
- Avoid unnecessary HDMI port replacement when the actual fault is elsewhere.
How to Take the Measurement
Before beginning, completely disconnect the PS5 from power and remove all cables.
- Disconnect power and remove all cables from the console.
- Set the multimeter to diode-test mode.
- Use the same probe polarity for every HDMI pin.
- For these reference measurements, place the black probe on ground and touch the red probe to the HDMI pin.
- Record each reading and compare it with the reference values and neighbouring signal lines.
- Investigate any line that reads 0.000, OL, or differs greatly from its matching pair.
Safety Warning: Never use diode mode on a powered motherboard. Be careful not to bridge adjacent HDMI pins with the multimeter probe tip.
PS5 HDMI Diode Mode Reference Measurements
| Pin | Reference | Function / Interpretation |
|---|---|---|
| 1 | 0.8 V | TMDS data line |
| 2 | GND | Shield / ground |
| 3 | 0.8 V | TMDS data line |
| 4 | 0.8 V | TMDS data line |
| 5 | GND | Shield / ground |
| 6 | 0.8 V | TMDS data line |
| 7 | 0.8 V | TMDS data line |
| 8 | GND | Shield / ground |
| 9 | 0.8 V | TMDS data line |
| 10 | 0.8 V | TMDS clock/data line |
| 11 | GND | Shield / ground |
| 12 | 0.8 V | TMDS clock/data line |
| 13 | 0.6 V | CEC / control line |
| 14 | NC | Not connected in this reference |
| 15 | 0.6 V | DDC / SCL line |
| 16 | 0.6 V | DDC / SDA line |
| 17 | GND | DDC / CEC ground |
| 18 | 0.5 V | +5 V / hot-plug related circuit |
| 19 | 0.6 V | Hot-plug detect line |
These readings are intended as a reference rather than an absolute specification. Small variations may occur depending on the multimeter being used, probe polarity, motherboard revision, and components connected to the circuit.
How to Interpret Abnormal Readings
0.000 V or Very Close to Zero
A reading at or very close to zero usually indicates a possible short to ground.
Check the HDMI connector for:
- Bent pins
- Solder bridges
- Damaged filters
- Shorted ESD protection components
OL / Open Line
An OL reading may indicate that the signal path has been interrupted.
Possible causes include:
- Broken HDMI connector pin
- Lifted PCB pad
- Cracked via
- Missing component
- Interrupted or damaged trace
One Line Is Much Lower Than Its Matching Pair
If one HDMI signal line reads significantly lower than the corresponding line in its pair, this can indicate leakage or a partially shorted protection component.
Compare the corresponding positive and negative data lines to determine which side of the pair is abnormal.
Several HDMI Lines Are Abnormal
If several lines show abnormal measurements at the same time, the fault may extend beyond the HDMI connector and protection network.
Further inspection may be required around:
- HDMI encoder
- Surrounding filters
- Protection components
- APU-side HDMI signal path
All Readings Are Normal but There Is Still No Display
Normal diode readings do not necessarily mean the HDMI system is completely healthy.
Continue diagnosis by checking:
- HDMI voltages
- Hot-plug detect
- Clock and data activity
- HDMI encoder power rails
- Physical condition of the HDMI port
- Software and HDMI handshake behaviour
Common PS5 HDMI Faults
Physically Damaged HDMI Port
Physical damage is one of the most common problems around the HDMI connection.
Look for:
- Bent internal HDMI pins
- Cracked solder joints
- Loose connector shell
- Torn PCB pads
- Impact damage
Shorted ESD Protection
A failed ESD protection device can cause one or more HDMI data lines to read close to ground.
When this happens, the protection component can prevent the HDMI signal from passing correctly through the circuit.
Damaged Filters or Chokes
A damaged or open filter can interrupt the HDMI signal path.
A technician may see a correct reading on one side of the component but an OL reading on the other side.
HDMI Encoder Failure
The PS5 may power normally and display a white light but still produce no video output.
If the HDMI port and signal path are healthy, the HDMI encoder and its surrounding circuit may require further investigation.
Hot-Plug or 5 V Problem
A problem with the hot-plug or 5 V circuit can prevent proper communication between the PS5 and the connected display.
The television may not detect the console, or the PS5 may not recognise that a television or monitor has been connected.
Useful Supporting Checks
Diode-mode testing should be used together with other diagnostic methods.
Microscope Inspection
A microscope can help identify:
- Bent HDMI pins
- Cracked solder joints
- Contamination
- Torn PCB pads
- Poor previous repair work
Continuity Testing
Continuity testing helps confirm the HDMI signal path through filters and from the connector to the next component.
Voltage Testing
With the board powered and using the appropriate testing method, voltage checks can be used to inspect:
- HDMI 5 V
- HDMI encoder power rails
- Hot-plug related voltages
Thermal Imaging
Thermal imaging can help identify a shorted IC or protection component that is heating abnormally.
Oscilloscope Testing
For deeper diagnosis, an oscilloscope can be used to confirm DDC, clock, or high-speed signal activity.
Recommended PS5 HDMI Diagnostic Workflow
A systematic approach can help prevent unnecessary component replacement.
Step 1: Inspect the HDMI connector under a microscope.
Step 2: Check all HDMI pins for shorts using diode mode.
Step 3: Compare the paired signal-line readings.
Step 4: Test continuity through the filters and protection components.
Step 5: Check HDMI 5 V and hot-plug detect behaviour.
Step 6: Confirm HDMI encoder power rails and inspect surrounding components.
Step 7: Only replace the HDMI port or HDMI encoder after the diagnostic evidence supports that repair.
Key Takeaway
PS5 HDMI diode-mode measurements are most useful when treated as a pattern rather than individual numbers.
A single diode reading is less important than the consistency between related HDMI lines, comparison with a known-good motherboard, and confirmation using continuity and voltage testing.
Following a structured diagnostic process can help identify whether the problem is located at the HDMI port, protection circuit, filters, signal path, hot-plug circuit, or another part of the HDMI system.
Important Technician Notice
This guide is intended for trained electronics technicians.
PS5 HDMI circuits contain fine-pitch components and multilayer signal paths. Incorrect probing, excessive heat, or poor soldering techniques can cause additional motherboard damage.
